Find resistance value of these resistors on Switch Oled

1 Posts
1 Users
0 Reactions
8 Views
(@Filippo)
New Member Guest
Joined: 9 hours ago
Posts: 1
Topic starter

Hi!
I'm new in the soldering world and I do it as a hobby to try repair things I own from time to time or to help some friends.

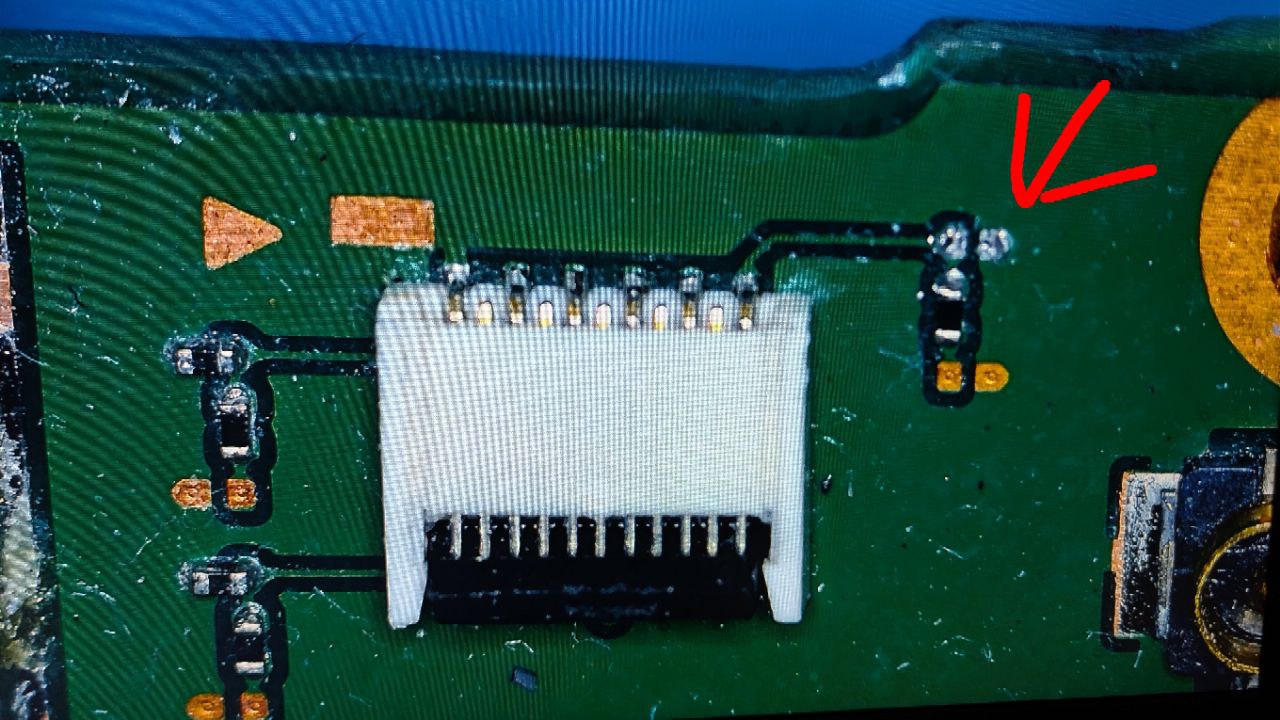

I was trying to get the resistance value of a resistor placed on the side B of the PCB of a Nintendo Switch Oled, as you can see in the attached picture where the resistor its missing.

I'm not able to get the resistance value. I don't know if I overheated the resistor or if the resistance value is higher than 2Mega Ohms and I cannot simply read it with my multimeter which do not got higher than 2 Mega Ohms.

I prefered to not use the hot air gun as a plastic component is placed nearby so I used the soldering iron set to 350 Celsius (660 F) as with lower temperature I was not able to remove it.

Can you please tell me if I probably burnt the component or if it may simply have a value higher than 2MOhms? Do you happens to know its resistance value?

Thank you so much for any advice! 🙂
